CM-26dG / CM-26d

Portable spectrophotometer with d:8° geometry, a built in illuminated sample viewer window, large colour display and ambidextrous operation. Available both with and without integrated gloss sensor.

Portable Spectrophotometer
Wavelength range 360-740 nm
d:8° Sphere Geometry
Simultaneous SCI / SCE measurement
2 Apertures SAV / MAV
UV calibration

Get in Touch

The first portable d:8° geometry instrument with an integrated ISO compliant 60° gloss sensor

The CM-26d and CM-26dG are the successors to the widely used CM-2600d spectrophotometer and an upgrade in every respect.

Portable sphere type spectrophotometers with horizontal alignment, designed for maximum performance when measuring the colour of flat or large samples. These close tolerance devices perform measurement both including (specular component included - SCI) and excluding (specular component excluded - SCE) surface conditions in one measurement sequence, significantly faster than the previous generation.

The CM-26dG features an integrated ISO compliant 60degree gloss sensor, offering significant improvement in efficiency to many organisations who previously controlled these key appearance values independently using separate instruments, processes and reporting tools.

The devices have a straightforward modern user interface that simplifies the process of measuring and interpreting colour data. The easy UI and inclusion of user-centric features like job mode ensure that users can operate the device more efficiently and with reduced user errors.

100%/0% / Adjusted (Instantaneous numerical adjustment of UV with no mechanical filter movement required) *1; 400 nm UV cutoff filter

Model		CM-26dG	CM-26d
Colour	Illumination/ viewing system	di:8°, de:8° (complies to DIN5033-7, JIS Z 8722c, ISO7724/1, CIE No.15)
	Applicable standards for illumination/viewing system	Conforms to ISO 7724/1, CIE No.15 (2004), ASTM E 1164 (SCI), DIN5033 Teil7, JIS Z 8722 Condition "c" standard
	Integrating sphere	Ø54mm
	Detector	Dual 40-element silicon photodiode array	Dual 40-element silicon photodiode array
	Spectral separation device	planar diffraction grating
	Wavelength range	360-740 nm	360-740 nm
	Wavelength pitch	10 nm
	Half bandwidth	approx. 10 nm
	Measurement range	0~175%
	Measurement range	Resolution: 0.01%
	Light source	Pulsed Xenon lamp
	Light source life time	more than 1 Million
	Illumination area	12.0×12.5 mm	MAV: Ø12.0mm
	Illumination area	12.0×12.5 mm	SAV: Ø6.0mm
	Measurement area	MAV: Ø8.0 mm	MAV: Ø8.0 mm
	Measurement area	SAV: Ø3.0 mm	SAV: Ø3.0 mm
	Measurement time	approx.1sec (SCI or SCE + gloss measurement)	approx. 0.7sec (SCI or SCE)
	Min. measurement interval	approx.2sec (SCI or SCE + gloss measurement)	approx. 1.5sec (SCI or SCE)
	Repeatability	Standard deviation within ΔE*ab 0.02	Standard deviation within ΔE*ab 0.02
	IIA	within ΔE*ab 0.12 (MAV/SCI) Average for 12 BCRA Series II color tiles compared to values measured with master body.	within ΔE*ab 0.12 (MAV/SCI) Average for 12 BCRA Series II color tiles compared to values measured with master body.
	UV control	No adjustment function (UV0%)
	Observer	2°, 10°
	Illuminants	A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,User-defined illuminant *2 (Max. 3 types) (Simultaneous evaluation with two light sources possible)
	Displayed data	Spectral values/graph, Colorimetric values/graph, Color-difference values, Pass/Fail Judgement, Pseudocolor, Graphical Workflows (Job)
	Colorimetric data	Lab, LC*h°, HunterLab, Yxy, XYZ, and Color Differences in these color spaces, Munsell
	Indexes	MI, WI (ASTM E313-73); YI (ASTM E313-73, ASTM D1925); ISO brightness (ISO2470); WI/Tint (CIE/Ganz); Tristimulus Strength; Opacity; Grey scale (ISO 105-A05); K/S strength (Apparent (ΔEab), Maximum absorption, Total wavelength);Staining degree (ISO 105-A04); Average Reflectance; User index 3; Blackness (My) (ISO18314-3/DIN55979) 4; Jetness (Mc) (ISO18314-3) 4; Undertone (dM) (ISO18314-3) *4
	Color difference formulas	ΔE*ab (CIE1976), ΔE94 (CIE1994), ΔE00 (CIE2000), ΔECMC (l:c), HunterΔE, ΔE99o (DIN6172)
Gloss	Measurement geometry	60° (complies to ISO 2813, ISO 7668, ASTM D523-08, ASTM D2457-13, DIN 67530, JIS-Z8741, JIS-K5600)	N/A
	Light source	White LED	N/A
	Detector	Silicon photo diode	N/A
	Measurement range	0-200 GU	N/A
	Measurement range	Resolution: 0.01 GU	N/A
	Measurement area	MAV: Ø10.0 mm	N/A
	Measurement area	SAV: Ø3.0 mm	N/A
	Repeatability	0-10 GU: 0.1 GU	N/A
		10-100 GU: 0.2 GU
		>100 GU: 0.2% (Standard deviation)
	IIA	0-10 GU: ±0.2 GU	N/A
	IIA	10-100 GU: ±0.5 GU (MAV)	N/A
	Data memory	Targets: 1.000
	Data memory	Sample: 5.000
	Battery performance	approx. 3.000 measurement/charge
	Battery performance	approx.1.000 measurement/charge when using Bluetooth™ communication
	Display	2.7 inch TFT color LCD
	Languages	English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Chinese (Simplified), Japanese
	Interfacing	USB2.0, WLAN (IEEE 802.11 b/g/n) /Bluetooth (Ver.4.1, SPP-compatible.)56
	Power	AC power supply	Dedicated AC adapter (with lithium-ion battery installed)
		Battery	Dedicated lithium-ion battery (removable)
		USB charging	USB bus power (with lithium-ion battery installed)
	Charging time	approx. 6 hours at complete discharge
	Operation temperature/	5-40°C / rH 80% or less (at 35°C) with no condensation
	humidity range	5-40°C / rH 80% or less (at 35°C) with no condensation
	Storage temperature/	0-45°C / rH 80% or less (at 35°C) with no condensation
	humidity range	0-45°C / rH 80% or less (at 35°C) with no condensation
	Size [mm]	81.2×93.3×228.6
	Weight [g]	Approx. 660 g (Lithium-ion battery included)	Approx. 630 g (Lithium-ion battery included)

* 1 Firmware version 1.10 or later and optional Color Data Software SpectraMagic NX2 Pro is required to use UV Adjusted setting.

* 2 Optional Color Data Software SpectraMagic NX2 is required for setting user-configured illuminants. When selecting an LED light source as LED-B1 for the illuminant, if SpectraMagic NX2 is in use, it must be version 1.5 or later, and if Spectrophotometer Configuration Tool CM-CT1 is in use, it must be version 1.51 or later.

* 3 CM-CT1 (Ver. 1.4 or later) and a valid SpectraMagic NX2 license are required for setting user indices.

* 4 Blackness (My) (ISO 18314-3/DIN 55979), Jetness (Mc) (ISO 18314-3), and Undertone (dM) (ISO 18314-3) shall only be applied when measurements are performed under SCE conditions.

* 5 Requires optional accessory WLAN/Bluetooth module (CM-A300).

* 6 WLAN security supports WPA2-PSK (WPA2-Personal) and WPA-PSK (WPA-Personal) for the AdHoc method, and WPA3-PSK (WPA3-Personal), WPA2-PSK (WPA2-Personal) and WPA-PSK (WPA-Personal) for the Infrastructure method.

NB:

Specifications are subject to change without prior notice.
Company names and product names herein are trademarks or registered trademarks of their respective companies.
If you have any questions about specifications, please contact your Konica Minolta representative.

Features

2 measurement apertures: choice of either medium aperture measurement (8mm) or small aperture measurement (3mm), to adapt to small or patterned samples

Integrated ISO compliant 60° gloss sensor (CM-26dG): gloss measurement data is captured and stored with colour data, greatly reducing the measurement and analysis time where both appearance characteristics are reported

Large colour display: Simple user interface minimises the risk of operator errors and measurement data is displayed both numerically and graphically

Rechargeable battery: lithium-ion battery is charged via USB bus power and additional batteries can be charged with external charger (optional)

Sample observation port: illuminated sample positioning window allows the operator to accurately and repeatably position the measurement aperture

Configuration Software: compatible with the CM-CT1 software that allows an administrator to quickly configure multiple instruments, lock device settings and perform remote troubleshooting and training over screensharing software

Close tolerance by default: maximise the accuracy and certainty of digital colour data throughout the supply chain, confident that all measurement data is traceable

CM-26d series Brochure

Download the Brochure for the CM-26d for more information

Download

SpectraMagic™ NX2 Colour Data Software

SpectraMagic™ NX2 is Konica Minolta's digital colour data software, helping operators to measure, compare, store, analyse and communicate colour.

The software features a QC template system that helps control the measurement and reporting process, minimising the opportunity for operator errors.

Data is presented in an easily customisable template system to focus on usable and actionable data and reporting.

Learn More

A computer monitor with SpectraMagic NX2 on the screen and a CM-26dG in the foreground

CoboSense - Cobot Solutions for Visual Quality Inspection

Automated Surface Quality Inspection

Automate your surface inspection systems and integrate our measuring devices for consistent and accurate inspection.

Boost efficiency and ensure high-quality output to meet stringent quality control standards across industries.

CoboSense can be integrated into different kinds of testing workflows and scaled to suit various automated production processes.

Firmware Update: March 2026

From March 2026 most portable spectrophotometers can be updated with new firmware.

For more information on the updated firmware you can check the news story below.

The firmware update can be performed as part of your annual maintenance and calibration and is loaded as standard to instruments manufactured after February 2026.

Firmware News Story

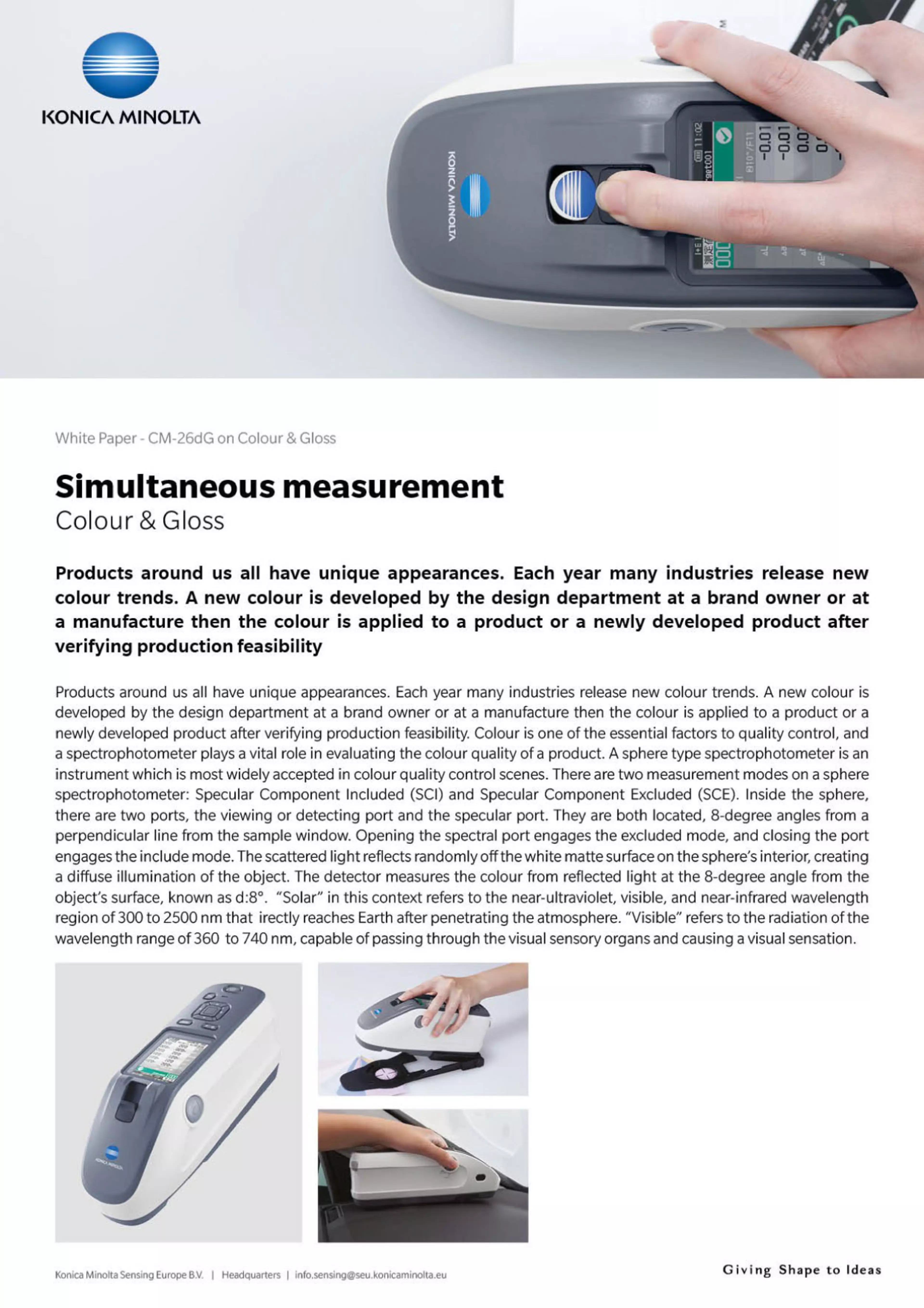

Simulatenous measurement of Colour & Gloss

Optimise your colour quality control with advanced SCI/SCE sphere spectrophotometry.

These instruments help ensure that new colour trends and designs can be consistently reproduced by measuring reflected light across relevant wavelength ranges in the visible and near‑solar spectrum.
