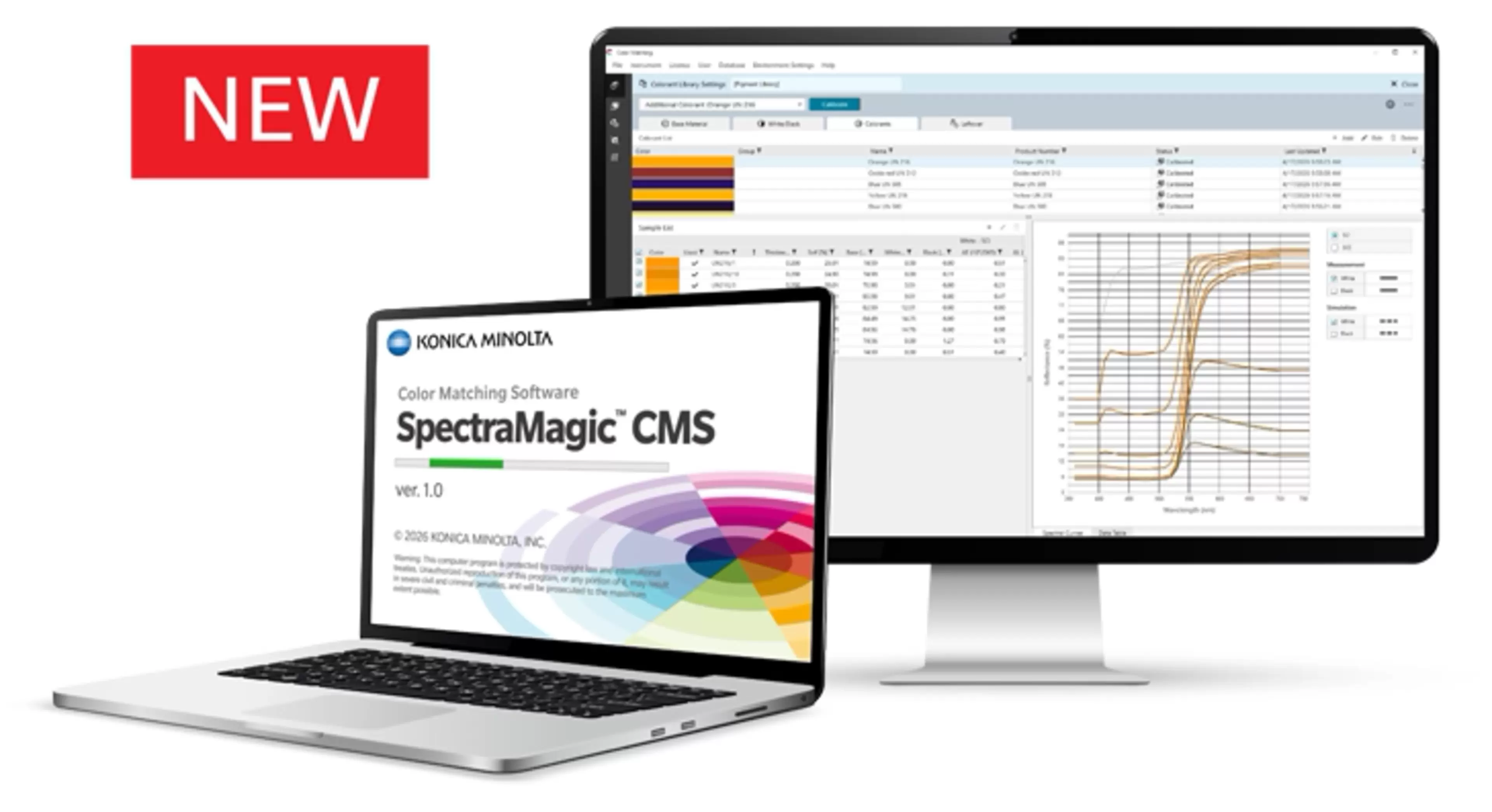

SpectraMagic™ CMS

Konica Minotla's new Colour Matching Software, developed for intuitive operation and precise colour formulation.

Achieve higher first-shot accuracy
Reduce formulation cycles and rework
Improve batch-to-batch consistency
Optimize raw material usage
Increase overall productivity

Get in Touch

Fast, Accurate, and Cost-Efficient Colour Matching Solution from Konica Minolta

Konica Minolta's Colour Matching Software offers an innovative approach to colour matching using a powerful algorithm

Seamless integration with Konica Minolta's spectrophotometers ensures precise and repeatable colour match formulation. This advanced software enables the conversion of existing data, including calibration samples, into new applications.

The flexible, adaptive software ensures accurate and reliable results, whether you're working with opaque or translucent colours. The inclusion of the binder’s intrinsic colour in the formulation process helps achieve precise and consistent colour matching, while the ‘local dE’ feature enhances the accuracy of formulations, especially for challenging colour matches.

Compatible Instruments
Compatible Instruments	CM-3700A Plus, CM-3700A1, CM-36dG/CM-36d/CM-36dGV, CM-26dG/CM-26d/CM-25d, CM-17d/CM-16d, CM-700d1/CM-600d1, CM-51, CM-3700A-U Plus, CM-3700A-U*1, CM-3600A

*1: Only instruments with the latest firmware versions are supported. Older firmware versions may not be supported.

Observer		2°, 10°
Color system color space		Lab, LC*h
Index		Metamerism Index, Contrast Ratio, GU
Color difference formula		ΔEab (CIE1976), ΔE00 (CIE DE2000), ΔE94 (CIE 1994), CMC
Illuminant		A, C, D50, D65, F2, F11, D55, D75, F6, F7, F8, F10, F12, U50, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Features	Measurement	Reflectance measurement, SCI, SCE, simultaneous SCI/SCE measurement Gloss measurement Viewfinder (CM-3700A Plus, CM-36d series, CM-17d) Manual averaging measurement
	Calculation modes	Color only, Simultaneous calculation of color and hiding power Formulation calculation for complete hiding, semi-transparent, and transparent finishes with thickness taken into account Formulation calculation utilizing leftover materials
	Data Set creation ^{*Full Version Only}	Calculation of the absorption coefficient and scattering coefficient for each material Material Priority Settings* Undesirable Material Combination Settings*
	Formulation calculation	Template creation Priority-Based formulation calculation Formulation calculation considering undesirable material combinations Scoring and sorting High-accuracy matching through a hybrid of theoretical models and measured data Automatic base selection
	Correction calculation	Batch correction, new correction Formulation history management
	Data	Connection to a database
	Others	Report output (PDF), Data export (CxF)
Display languages		Japanese, English, German, French, Spanish, Italian, Portuguese, Chinese (Simplified and Traditional), Turkish, Russian, Polish, Korean

	SpectraMagic™ CMS Full	SpectraMagic™ CMS Standard
Formulation of opaque and translucent colours	●	●
Correction	●	●
Material leftover management	●	●
QC	NX2 Pro/Lite	NX2 Pro/Lite
History-based data utilization	●	●
Colorant definition	●	–
Database function	●	●
User Management	●	–

Standard option available with core formulation features, for multi-client installations
SpectraMagic™ CMS provides comprehensive formulation and colour calculation capabilities designed for accurate and efficient colour matching across various applications.

System Requirements
OS	Windows® 11 Pro
CPU	Intel® Core i5 2.7 GHz or higher processor (recommended)
Memory	8 GB or more (16 GB or more recommended)
Storage	20GB or more of free space
Display resolution	1920×1080 or higher resolution recommended
Other	USB port: Required for dongle version Connection to external network: Required for activation Database: PostgreSQL 15 or later. For PostgreSQL system requirements, refer to the official PostgreSQL website.

*: The hardware of the computer system must meet or exceed the greater of the recommended system requirements for the compatible OS being used or the above specifications

Windows^® is a trademark or registered trademark of Microsoft Corporation in the USA and other countries.

Intel^® is a trademark or registered trademark of Intel Corporation in the USA and other countries.

KONICAMINOLTA, the Konica Minolta logo and symbol mark, “Giving Shape to Ideas” and SpectraMagic™ are registered trademarks or trademarks of KONICAMINOLTA,INC.

The specifications given here are subject to change without prior notice.

Displays shown are for illustration purposes only.

Unified Colour Control

Konica Minolta provides solutions and support on all aspects of the colour supply chain. By combining SpectraMagic™ CMS with our Quality Control software SpectraMagic™ NX2, professional colour management can be achieved through a seamless workflow across connected applications. Our familiar design and straightforward instrument connection will make it easy for you to get started. If you have any questions about our instruments and software, our global support network will gladly assist you.

Designed for plastics, paints & coatings, and other colour-critical industries, SpectraMagic™ CMS delivers:

Advanced Features

Powerful algorithm for opaque and translucent colour matching
Local Delta E function for enhanced precision in challenging matches
Simultaneous calculation of colour and opacity
Intelligent batch correction based on real pigment performance data
Continuous improvement through learning from laboratory and production samples
Simple workflow enabled by a user-friendly GUI

→ Enables accurate and efficient colour formulation across a wide range of materials while reducing trial-and-error and improving first-shot accuracy.

Konica Minolta Hardware Integration

Seamless integration with Konica Minolta portable and benchtop spectrophotometers
Reliable and consistent measurement data transfer

→ Ensures reliable data transfer and consistent measurement results, reducing errors and enabling stable colour management across devices.

Total Support

Dedicated Colour Help Desk staffed by industry experts
Support for laboratory and production-related formulation challenges
Decades of colour application experience
Practical, industry-specific expertise

→ Provides expert support for complex colour challenges, helping users reduce troubleshooting time and achieve reliable results faster.

Integrated Colour Management Solution

Pass/fail results at a glance
Easy organization of large volumes of data
Custom report creation capabilities

→ Enables a seamless workflow from measurement and quality control to formulation, ensuring consistent data use across separate applications
