CM-SA2 Skin Analysis Software

Software developed to provide clear and easy to understand colour measurement data to the cosmetic-, skin care-, healthcare and related industries.

Specific skin measurement indeces
Colorimetric values (L*, a*, b*, C*, h and Munsell)
Simple yet comprehensive for all skin measurement applications

Get in Touch

Share:

Cost effective solution for the colour measurement of skin tone with commonly used indexes and colorimetric data

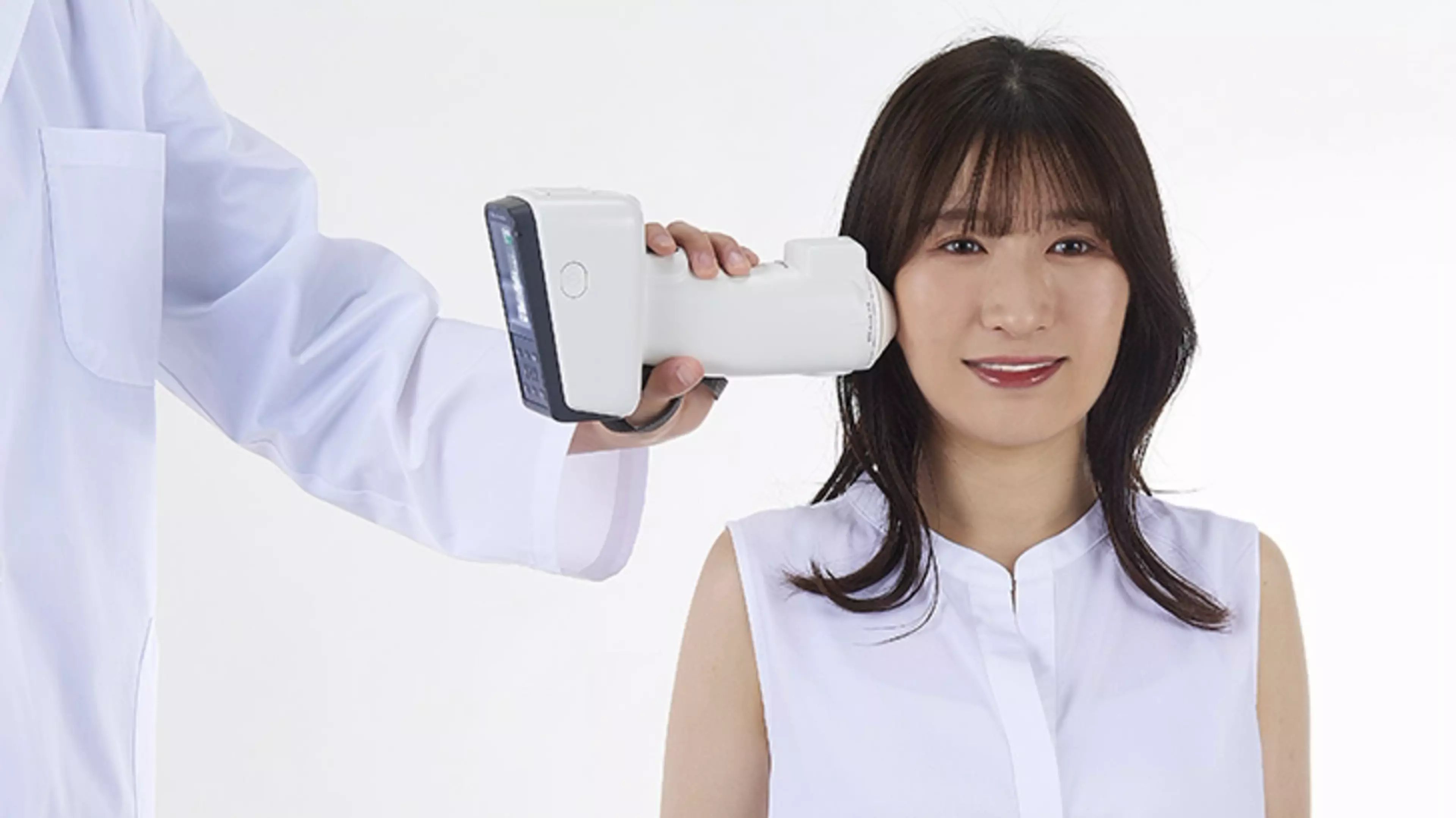

When connected to a compatible portable spectrophotometer the Skin Analysis Software CM-SA2 provides data in several skin-specific indices, as well as common colorimetric values in a single measurement. This can for example be used for evaluation of cosmetics, personal hygiene products, and some pharmaceutical products.

The software is compatible with the camera viewfinder of the CM-17d for accurate positioning of measurements (viewfinder image is also saved with measured data for later review).

Measurements can be made using the major skin measurement indexes allowing researchers to accurately and traceably evaluate efficacy of various products on a range of skin types (cleaning, tinting, inflammation reduction etc).

Specificaitons
Compatible Instruments	CM-17d/CM-16d, CM-700d/CM-600d, CM-2600d/CM-2500d
Skin Data Display	Melanin Index Hb Index [Total hemoglobin (oxidized + reduced) index] Hb SO2 Index (%) [Hemoglobin oxygen saturation index (%)] ITA° [Individual Typology Angle](*2), ITA° Classification
Colorimetric value display	L, a, b, C, h, Munsell value (Hue, Value, Chroma)(*3)
Graph Display	Hue-Value graph, Hb Index-Melanin Index graph, ITA° graph, 2D user-specified axis graph(*4)
Observer (*5)	2°, 10°
Illuminant (*5)	C, D65
Data Handling	Saving / reading data in CM-SA2 original format Saving data in text (CSV) format [Melanin Index, Hb Index, Hb SO2 Index (%), L, a, b, C, h, Munsell value (Hue, Value, Chroma), ITA°, Spectral reflectance (400-700 nm)(*6)]
Display Languages	Japanese, English, Chinese (Simplified and Traditional), Korean
Other	Save and display viewfinder images CM-17d(*7)

Minimum System Requirements:

OS: Windows® 10 Pro 64 bit Version 1903 or higher/Windows® 11 Pro

CPU: Intel® Core i5 2.7 GHz or higher processor (recommended)

Memory: 2 GB or more (4 GB or more recommended)

Storage: 10 GB or more

USB port: Required for connection to instrument

Connection to external network: Required for activation

Spectrophotometer must be connected to the CM-SA2 software in order to collect and process data at the time of measurement.

It is not possible to upload measurement data into CM-SA2 software for processing after being collected by the instrument if it was not connected to CM-SA2 software during measurement.

*1: Instruments with new firmware versions only. Instruments with old firmware versions may not be supported.

Click here for firmware versions of compatible instruments.

https://www.konicaminolta.com/instruments/download/software/

color/cmsa2/index.html

*2: ITA° values are calculated for a 2° observer and Standard Illuminant D65.

*3: Munsell data are calculated for 2° observer and Standard Illuminant C.

*4: Colorimetric values for each axis can be selected from L*, a*, b*, C*, and h.

*5: Illuminant / Observer can be selected from one of the four conditions.( 2°/C, 2°/D65, 10°/C, 10°/D65 )

*6: The spectral reflectance data that are output are the reflectance obtained in SCI (Specular component included) mode.

*7: CM-17d viewfinder images will be saved only when measurements are taken with Save Viewfinder Image enabled. Saved images are linked with measurement data for later display.

*8: The hardware of the computer system must meet or exceed the greater of the recommended system requirements for the compatible OS being used or the above specifications.

• Please do not use this software to assist in cosmetics sales at retail stores.

• This software and the spectrophotometer that can be connected to this software are not medical devices. The results output by this software cannot be used for diagnosis, treatment, or any other medical purposes.

• Windows® and Excel® are a trademarks or registered trademarks of Microsoft Corporation in the USA and other countries.

• Intel® is a trademark or registered trademark of Intel Corporation in the USA and other countries.

• Bluetooth® is a registered trademark of Bluetooth SIG, Inc. and is used under license agreement.

• KONICA MINOLTA, the Konica Minolta logo and symbol mark, and "Giving Shape to Ideas" are registered trademarks or trademarks of

KONICA MINOLTA, INC.

• The specifications given here are subject to change without prior notice.

• Displays shown are for illustration purposes only.
