| Specifications |
|---|

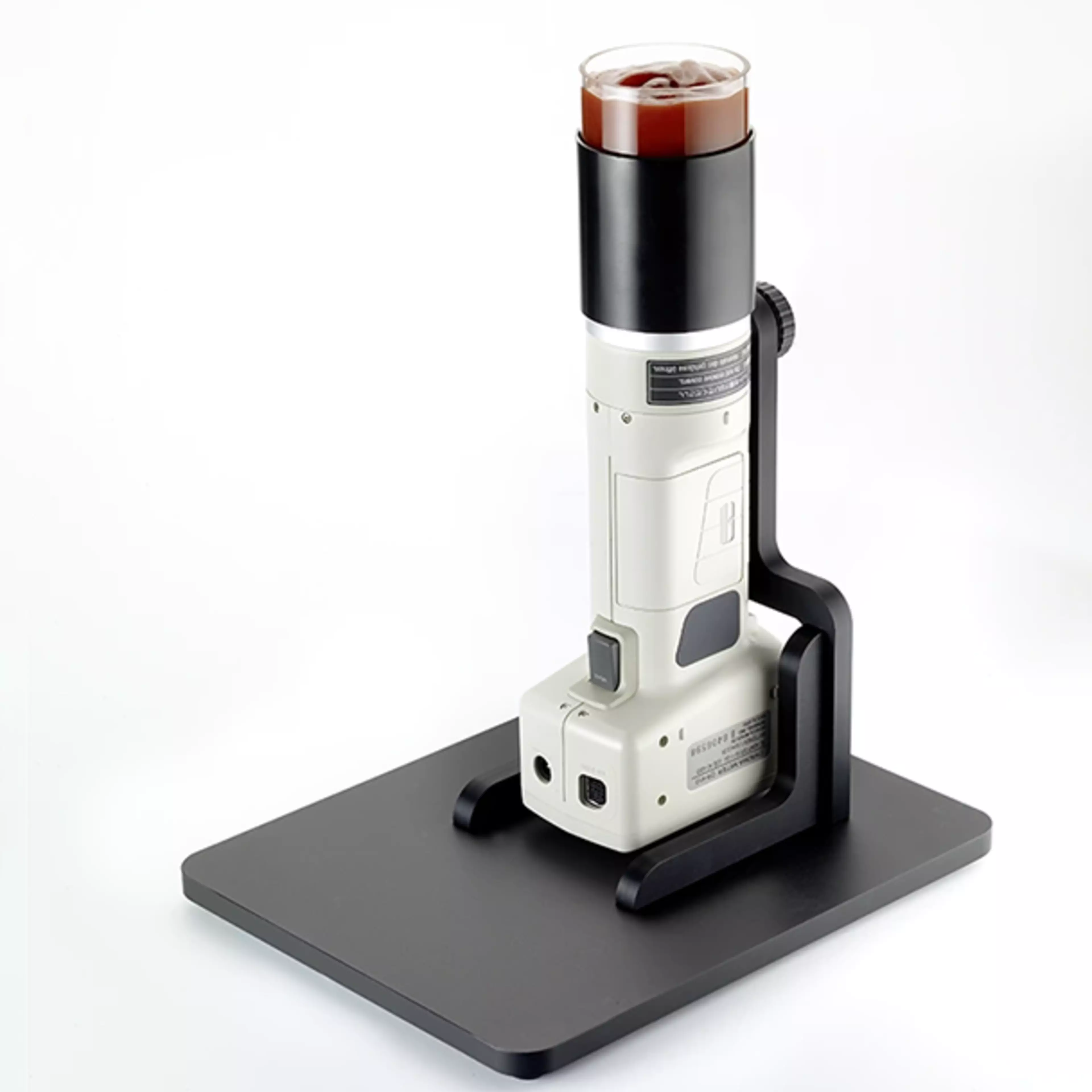

Model | CR-410 Head | Illuminating/viewing system | Wide-area illumination:0° viewing angle; specular component included | Detector | Silicon photocells (6) | Display range | Y: 0.01% to 160.00% (reflectance) | Light source | Pulsed xenon lamp | Measurement time | 1 sec. | Minimum measurement interval | 3 sec. | Battery performance | Approx. 800 measurements (when using batteries under Konica Minolta’s testing conditions) | Measurement/illumination area | Ø 50 mm/ Ø 53 mm | Repeatability | Within ΔE*ab 0.07 standard deviation (when the white calibration plate is measured 30 times at intervals of 10 seconds) | Inter-instrument agreement | ΔE*ab: within 0.8Average of 12 BCRA Series II colors | Observer condition | CIE: 2° Standard Observer | Illuminant condition | CIE: C, D65 | Tolerance judgment* | Colour difference tolerance (box tolerance and elliptical tolerance) | Color space/colorimetric data* | XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 can be registered from computer), SCAA scale | Languages* (Display) | LCD: English (default), German, French, Italian, Spanish, Japanese | Storable data sets | 1,000 (Measuring head and data processor save different data) | Color-difference target colors | 100 | Calibration channels* | 20 channels (ch00: White calibration; ch01 to ch19: User calibration) | Display* | Chroma values; colour difference values; PASS/WARN/FAIL display | Interface / Baud rate* | RS-232 compliant (for data processor/PC)* Baud rate: 4,800, 9,600, 19,200 (bps); Set at 9600 when shipped from factory | Power source | Four AAA size alkaline or Ni-MH batteriesAC Adapter AC-A305 AC100 – 240 V 50/60Hz | Dimensions (W × H × D) | 102 × 244 × 63 mm | Weight | Approximately 570 g(including 4 AAA size batteries and not including RS-232C cable) | Operating temperature/humidity range | 0 – 40°C, relative humidity 85% or less with no condensation | Storage temperature/humidity range | -20 – 40°C, relative humidity 85% or less with no condensation | Other | LCD backlight ON/OFF function (When on, backlight stays ON for 30 seconds after last key or measurement operation) |
| Section 1 |
|---|
Name | Data Processor | Model | DP-400 | Display range | Y: 0.01% to 160.00% (reflectance) | Measurement time | 1 sec. | Minimum measurement interval | 3 sec. | Battery performance | Approx. 800 measurements (when using batteries under Konica Minolta's testing conditions) | Illuminant condition | C, D65 | Display | Chroma values; color difference values; color difference graphs; PASS/WARN/FAIL display | Tolerance judgment* | Colour-difference tolerance (box tolerance and elliptical tolerance) Only for display function | Colour space/ colourimetric data* | XYZ, Yxy, L*a*b*, Hunter Lab, L*C*h, Munsell (Illuminant C only), CMC (l:c), CIE1994, Lab99, LCh99, CIE2000, CIE WI/Tw (Illuminant D65 only), WI ASTM E313 (Illuminant C only), YI ASTM D1925 (Illuminant C only), YI ASTM E313 (Illuminant C only), User index (Up to 6 registered in the measuring head can be used) | Languages* (Display) | LCD: English (default), German, French, Italian, Spanish, Japanese | Storable data sets | Max. 2000 pieces of data (divided into 100 pages)Deletion and Undoing of selected stored data (one or all data) are possible | Colour-difference target colours* | Only for the operating function (100 pieces of data when the measuring head is connected; input of measurement values or numeric) (Independent from page function) | Calibratiom channels* | Only for the operating function (20 channels when the measuring head is connected)(Channel 00: White calibration; Channels 01 through 19: User calibration) | Page function | 100 pages | Display | Dot-matrix LCD with backlight (16 characters x 9 lines + 1 line for icon display) Contrast adjustment | Printer | 384-dot line thermal printer (can also print graphs); Automatic printing for each measurement (can be set not to print) | Statistical function | Maximum, minimum, average, and standard deviation | Automatic measurement* | Date and time display: Year, month, day, hour, minuteTimer: 3 seconds to 99 minutes (Some measurement modes require more than 3 seconds) | Interface | RS-232C compliant Baud rate (bps): 19200 fixed (when connected to PC); when measuring head is connected, baud rate is automatically set to that of the measuring head. | Power source | Four AA-size alkaline or Ni-MH batteriesAC Adapter AC-A305 AC100 - 240 V 50/60Hz | Dimensions (W x H x D) | 102 × 244 × 63 mm | Weight | Approx. 600 g (not including batteries and paper) | Operating temperature / humidity range | 0 - 40°C, relative humidity 85% or less with no condensation | Storage temerature / humidity range | -20 - 40°C, relative humidity 85% or less with no condensation | Other specifications* | User calibration function (multi-calibration/manual calibration); Measurements for automatic averaging function; Print on/off function; CR-400 measurement data import function; All colour space print on/off function; Data protection on/off function; Backlight on/off function; Buzzer on/off function; Display color limit function; Remote mode (stored data output); Character input function (alphanumeric) | Standard accessories | Roll paper (1); RS-232C Cable CR-A101 (Head-DP) | Optional accessories | Shoulder Strap SS-01; Hard Case CR-A103; Roll Paper DP-A22 (5 rolls); RS-232C Cable CR-A102 (for PC); CR-400 Utility Software CR-S4w; Colour Data Software SpectraMagicNX CM-S100w |
|
